Features & Specifications:
1. H.264 main profile Video compression format;

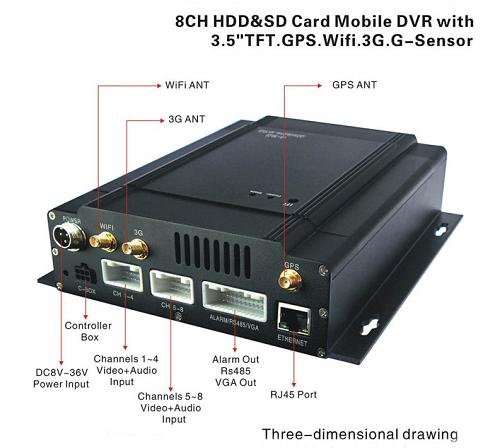

2. Work with power supply ranging from DC8V to DC36V;
3. Supports Manual Record, Scheduled Record and Alarm record;
4. Video resolution: D1/HD1/CIF/QCIF (8ch D1 non-real time record,
4ch D1 real time record, 8ch HD1/CIF/QCIF real time record)
5. Supports 8 channels "Video & Audio" recording and playback simultaneously;
6. Supports 8 channels "alarm input" and 2 channel "alarm output";

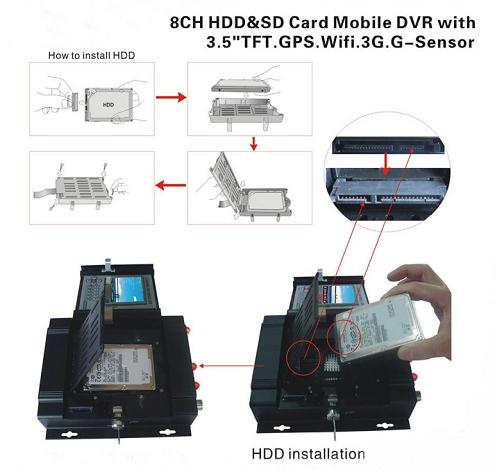

7. Video clips can be saved onto either SD card or HDD; Supports SD card up to
64G and Hard Drive up to 4TB;

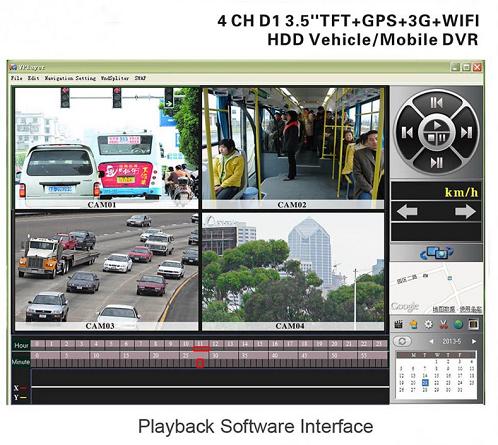

8. Video files can be backed up in H.264 or AVI format; and can be played
with normal Video player or customized player on PC;
9. With "Power-off delay" function to guarantee the DVR would shut down delay
to keep recorded files well saved when an emergency occurs;

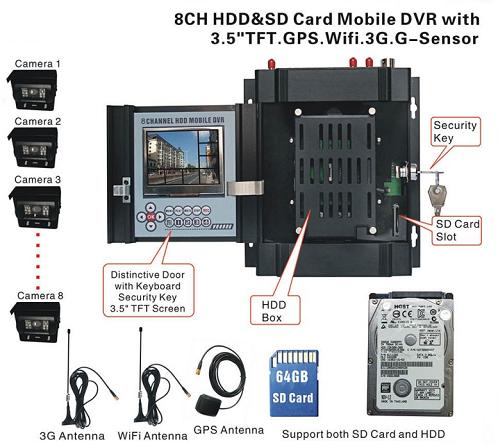

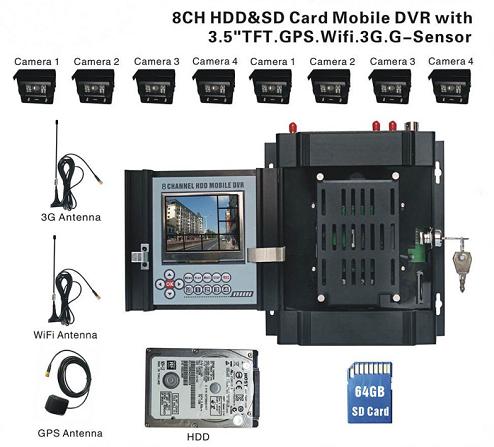

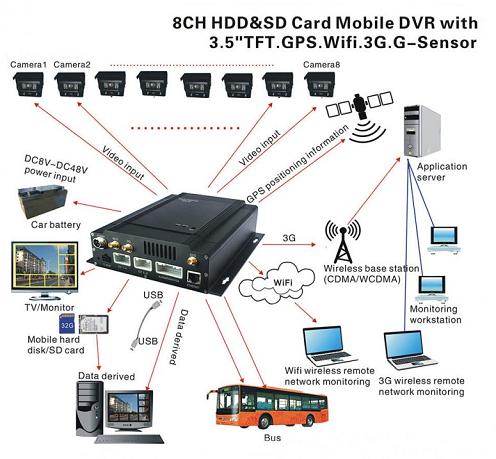

10.Support 8 cameras, 8 cameras need get power from external power supply;

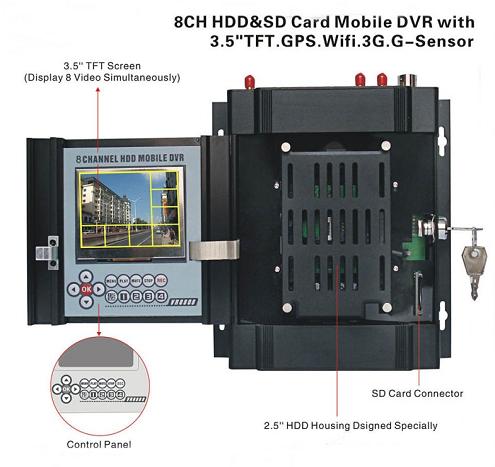

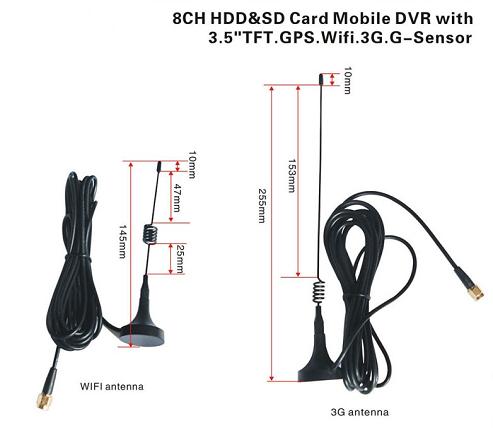

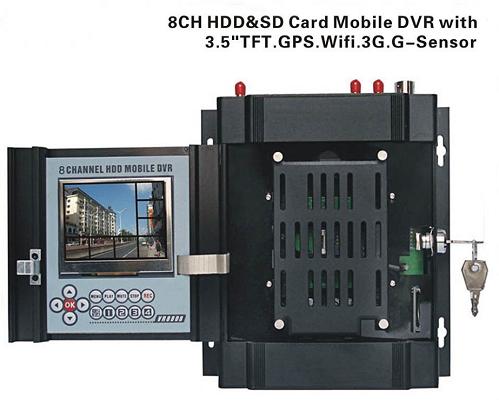

11.Support 3.5“ TFT, GPS, Wi-Fi and 3G

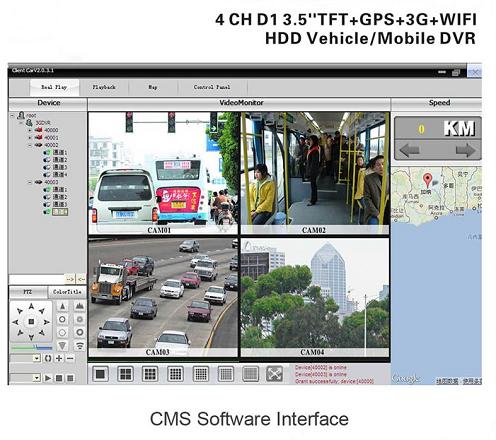

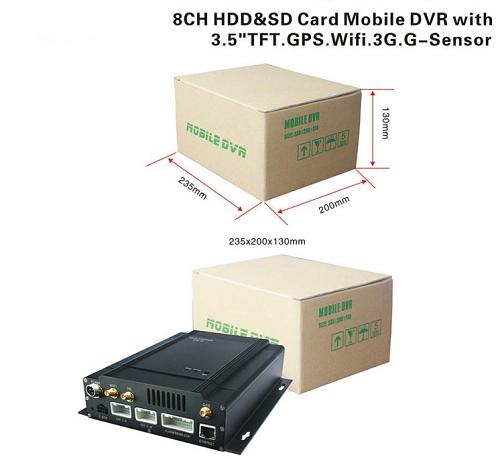

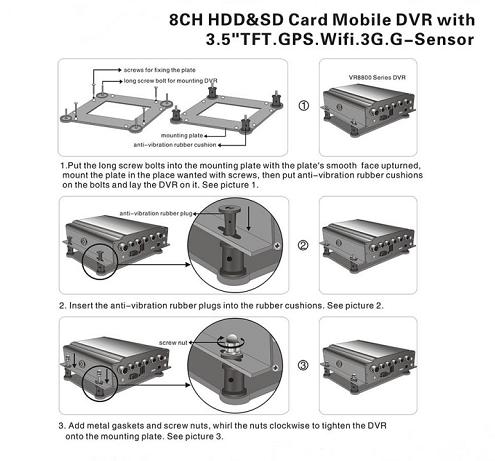

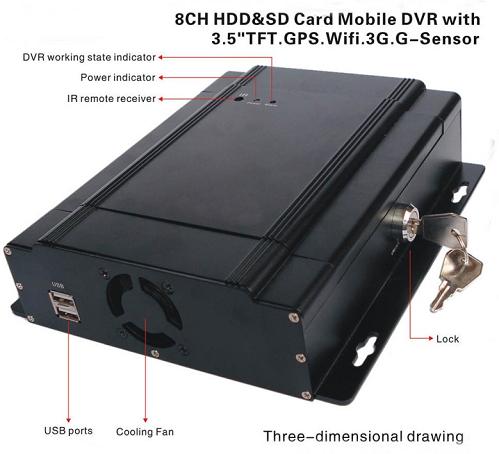

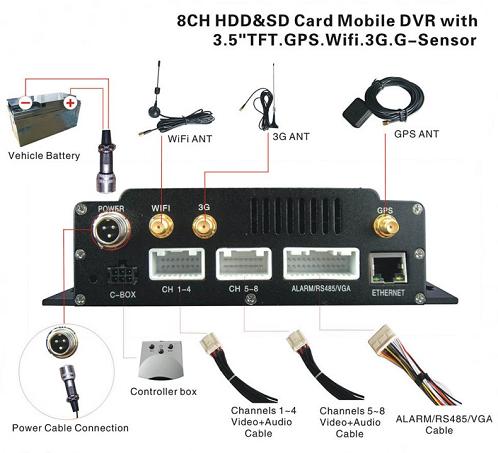

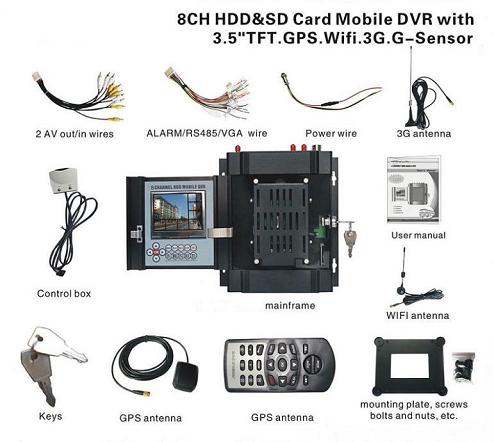

Its clear and more detailed pictures are as below:
