Features & Specifications:
1.Supports Motion Detect, Manual Record & Scheduled Record;
2.Supports dual SD cards up to 64GB; Supports Loop Recording;
3.Compression format: MPEG-4; Video format: ASF;
4. Records 2 ch Audio & Video simultaneously; Max Resolution:
720X480/30fps;
5. Supports 5 or 10 seconds Pre-recording options;
6. With USB interface for easy data backup;
7. Can power 2 cameras directly.
8. Metal design, with cooling fan equipped;
9.Supports GPS function; saves GPS data while recording, 3G/Wi-Fi funtion for option;
10. With IR Remote.
Technical Parameters:
Model: FT VMR-F7 (TFT/GPS/3G for option)
Power input: DC8V~DC36V
Power onput: DC12V 3A
Working Tempreture: -10C~+50C
Output Vol tage(For Camera): DC 12V 3A
Power Supply: Car battery
Compression Format: H.264
Video Format: H.264/AVI
Record Signal: 2 Channel Video/Audio
Max Memory Capacity: 2 SD cards (each card can support max 64 GB)
Record Mode: Motion Detect/ Scheduled Record/ Manual Record
Video Resolution: D1/HD1/CIF/QCIF for each Channel;
Frame Rate: 1-25fps (PAL) or 1-30fps (NTSC) for each channel;
USB Ports: USB 2.0 x 2
File Store Mode: Overwrite/Stop When Full
Alarm Function: 1CH Alarm input independently and 1CH Relays Alarm output
Internet Interface: 10M/ 100M RJ45
Dimension: 138mm (L) x 45mm (W) x 170mm (H)
Weight: 1.5 KG (Model:SC VMR-F7 3GW)

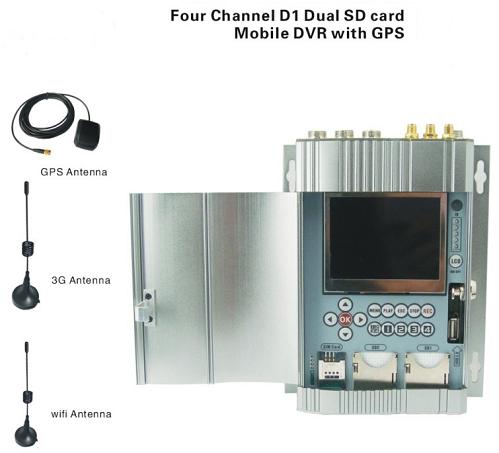

Its clear and more detailed pictures are attached as below:
